GROHE QuickFix (Rapid SL)
Product Catalog
Rapid SL, urinal, 1,3m, Tectron 230 V/fv
Model: 38786001
Rapid SL
Rp 21,101,000

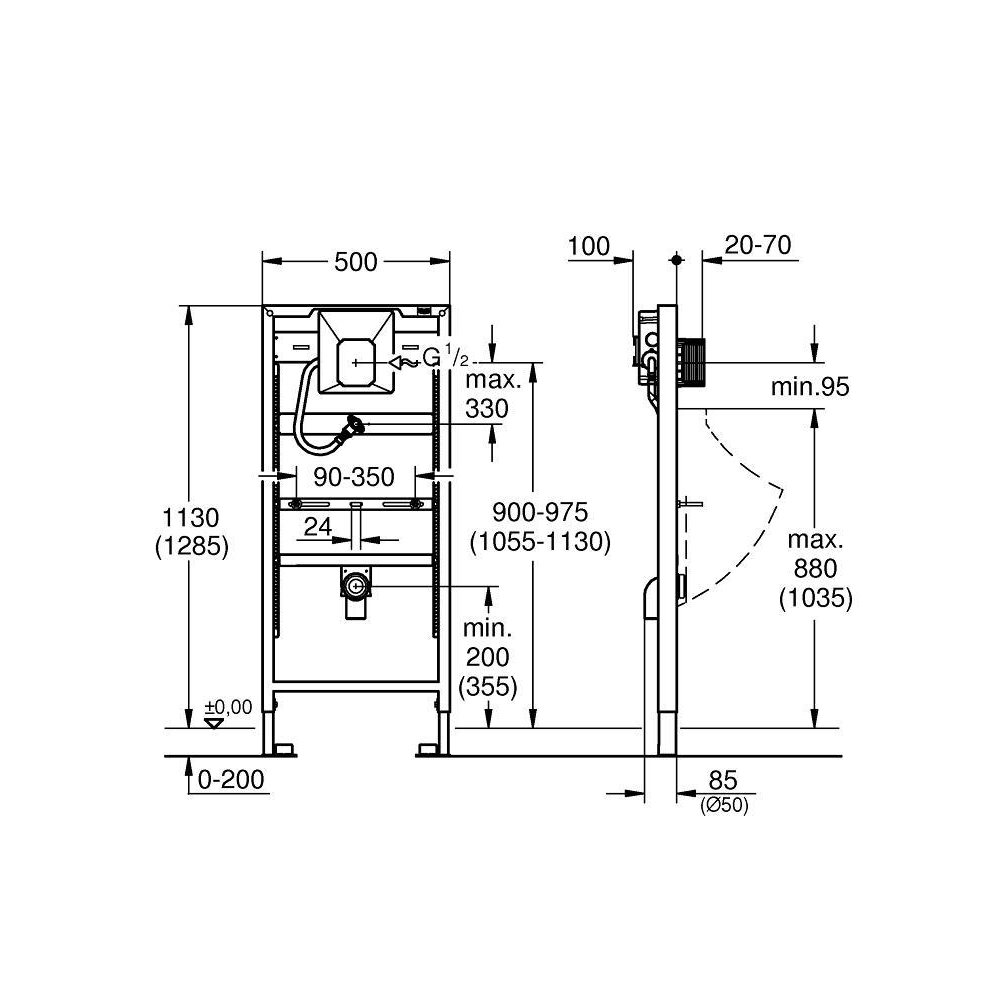

Technical Specification
Technical Details
Product Description
1.13 and 1.30 m installation height
for manual actuation or Tectron
infra-red electronic 6 V or 230 V
for on-the-wall installations or studded walls
height adjustable fitting connections
HT-outlet bend Ø 50 mm
fixing bolts M8, with fixing device
for the ceramic
inlet connection and inlet connecting set
water group with stop valve
flow pressure min 0.5 bar
operating pressure max 10 bar
flush aid
functional unit checked ex factory
water supply connections ½" outer thread
connecting box for mains supply 230 V
installation box with gasket
inspection shaft incl. protection during
construction phase
for on-the-wall installation please order wall brackets 38 558 00M (sold separately)
Installation Type
Prewall, studdwall, freestand.
Height (mm)
150.0
Length (mm)
1170.0
Width (mm)
520.0
Net Weight (kg)
12.1
Gross Weight (kg)
12.1
Collection
Rapid SL
Segment
Luxury
