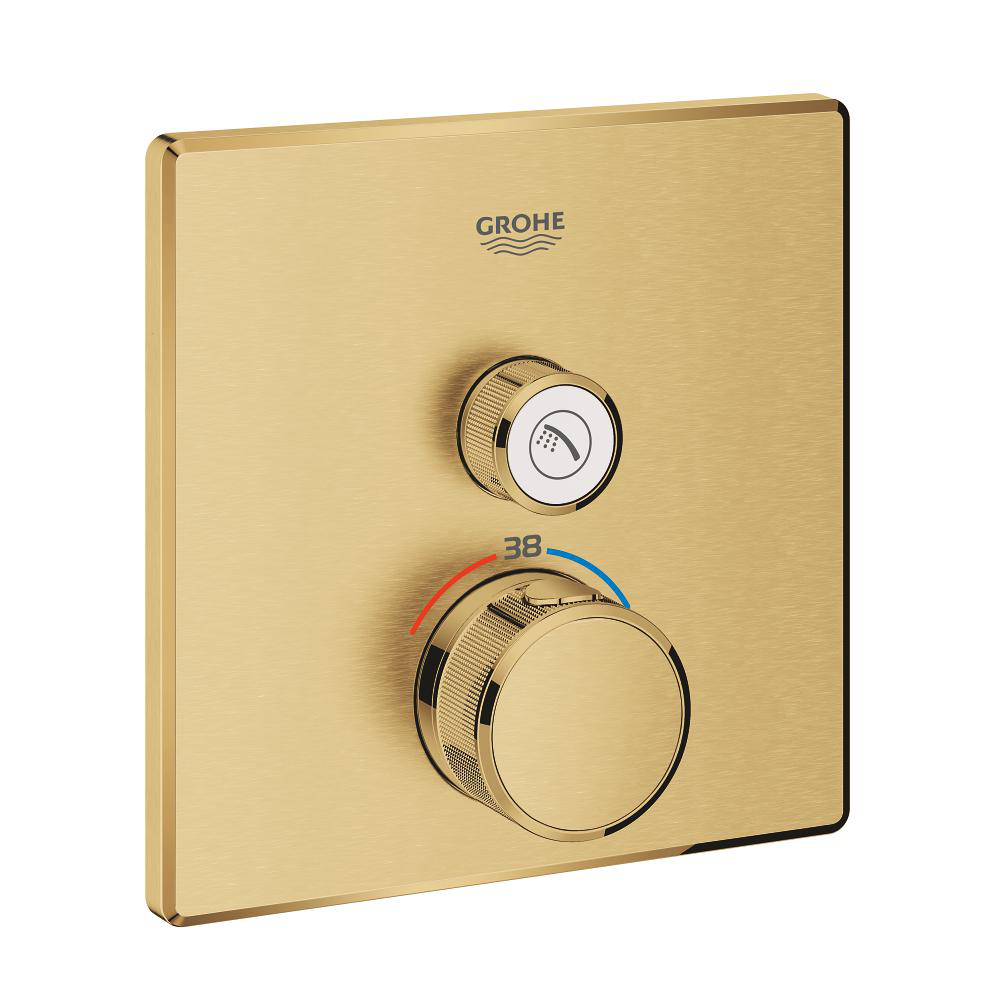

GRT SmartControl THM trim square 1SC
Model: 29123000
Grohtherm SmartControl
Rp 13,346,000
Technical Specification
Technical Details
Product Description
trim set for GROHE Rapido SmartBox (35 600/35 604)
metal wall escutcheon with GROHE FastFixation (covered escutcheon
and shaft sealing, covered fixing), retroactively 6° adjustable
GROHE LongLife finish
GROHE SmartControl - push for ON-OFF, turn for volume adjustment from GROHE EcoJoy to Full Flow
exchangeable symbols
GROHE TurboStat - compact cartridge with wax thermoelement
GROHE ProGrip with knurl structure
GROHE SafeStop - safety button at 38°C
GROHE SafeStop Plus - optional temperature limiter at 43°C or 46°C included
built-in non return valve
and dirt strainers
without roughing-in set 35 600/35 604 (please order separately)
flow performance:
outlet A (to external shut-off) = 34 l/min
outlet B/C = 29 l/min
Style
Missing
Installation Type
Wall mounted concealed

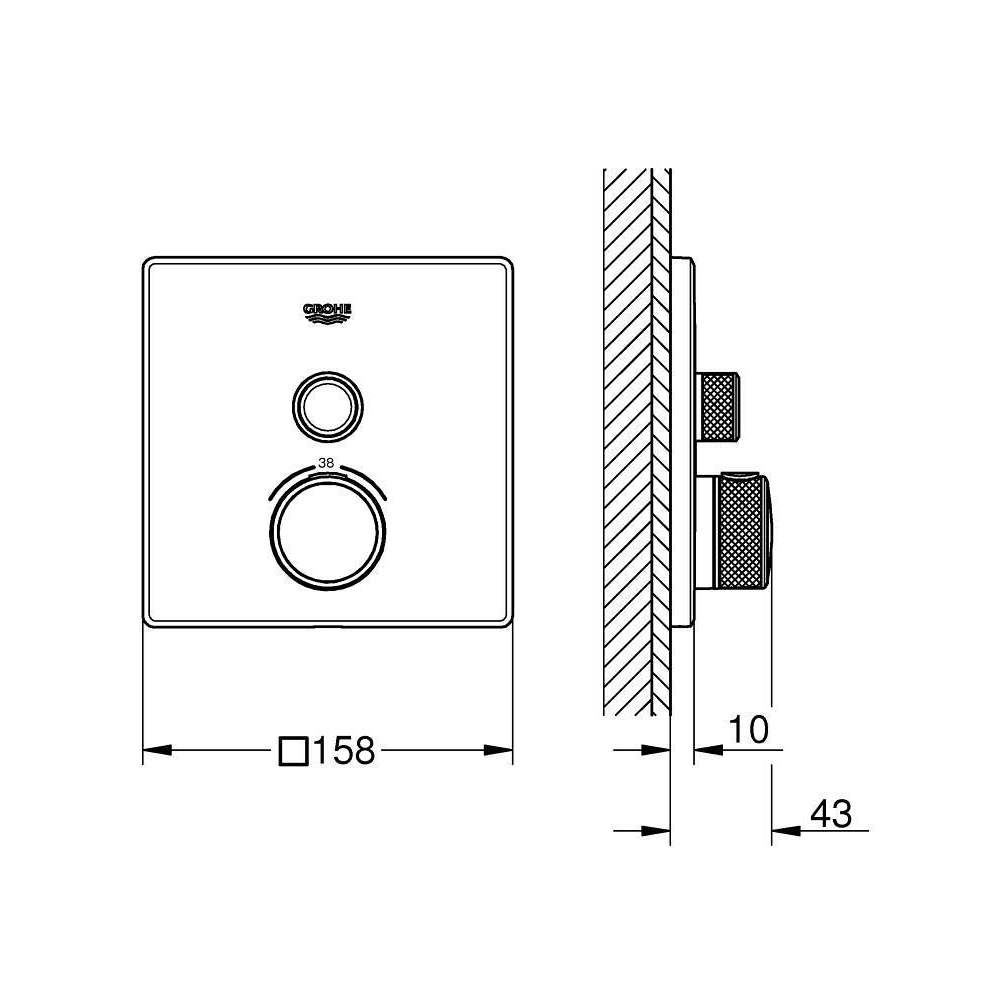

Height (mm)
243.0
Length (mm)
200.0
Width (mm)
180.0
Net Weight (kg)
1.665
Gross Weight (kg)
1.665
Colors & Finishes
Chrome
Collection
Grohtherm SmartControl
Segment
Luxury
Features & Technologies
GROHE StarLight
GROHE TurboStat
SafeStop
SmartControl
