Product Description
to control LightCurtain of Rainshower Aqua 40" AquaSymphony ceiling shower
additional light, sound and steam modules can be connected and controlled
Consisting of:
2 plug connections, each for one pair of sound modules (36 473 000)
1 plug connection for one pair of light modules (36 472 000)
1 plug connection LightCurtain for Rainshower Aqua 40" AquaSymphony (26 863 000)
2 plug connections for steam module (29 414 000), including 1 connection for steam generator and 1 connection for temperature sensor
2 plug connections for power supply (per power supply max. 4 devices light/sound)
2 plug connections for Bluetooth unit (supply voltage and data line)
CE approved
must be accessible for service
optional the base unit box can be placed into extra equipment 36 474 000
Style
Cosmopolitan
Installation Type
Wall mounted exposed

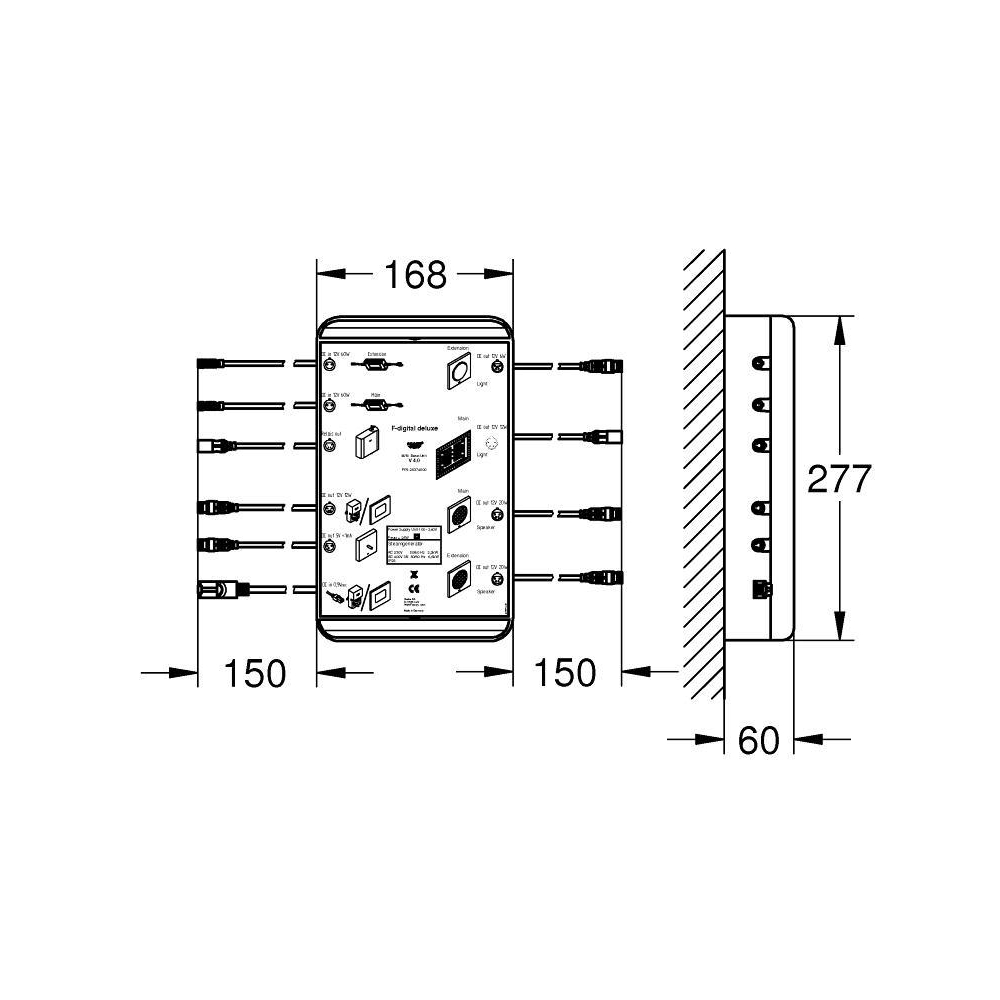

Height (mm)
100.0
Length (mm)
299.999
Width (mm)
299.999
Net Weight (kg)
1.51
Gross Weight (kg)
1.51
Colors & Finishes
Chrome
Collection
F-digital deluxe
Segment
Others
