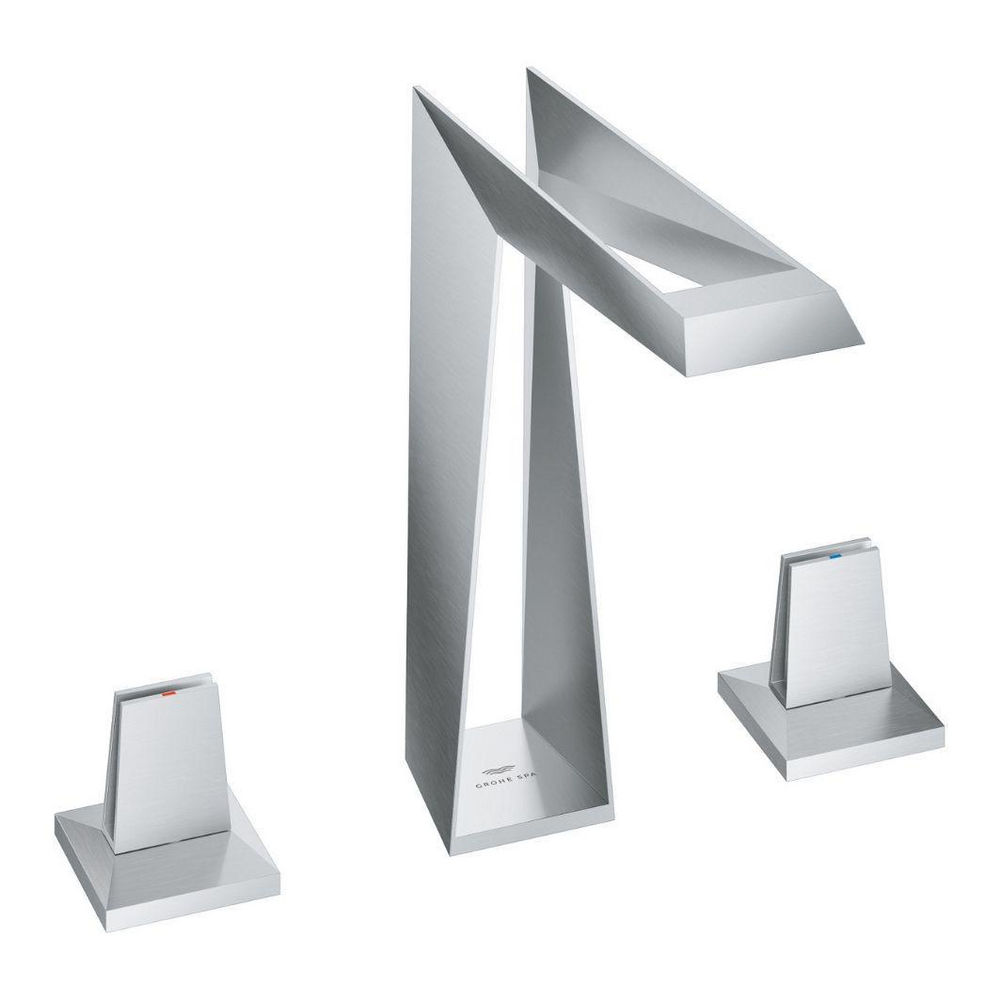

Allure Brilliant 2hdl basin 3-h L
Model: 20634SD0
Allure Brilliant
Rp 797,620,000
Technical Specification
Technical Details
Product Description
GROHE EcoJoy – less water, perfect flow
maximum flow rate (at 3 bar): 5 l/min
spout with integrated mousseur
red and blue markings on handles for hot and cold water
valves hot/cold with ceramic headparts
Push-open waste set 1 1/4″
pressure-proof, flexible connection hoses
between spout and side valves
technical data
flow pressure min 0.5 bar
recommended pressure 1.0 – 5.0 bar
if static pressure is more than 5 bar fit pressure reducer
avoid major pressure differences between cold and hot water supply
max. temperature hot water inlet: 80°C
recommended temperature hot water inlet (energy saving): 60°C
Style
Cosmopolitan
Installation Type
Deck mounted

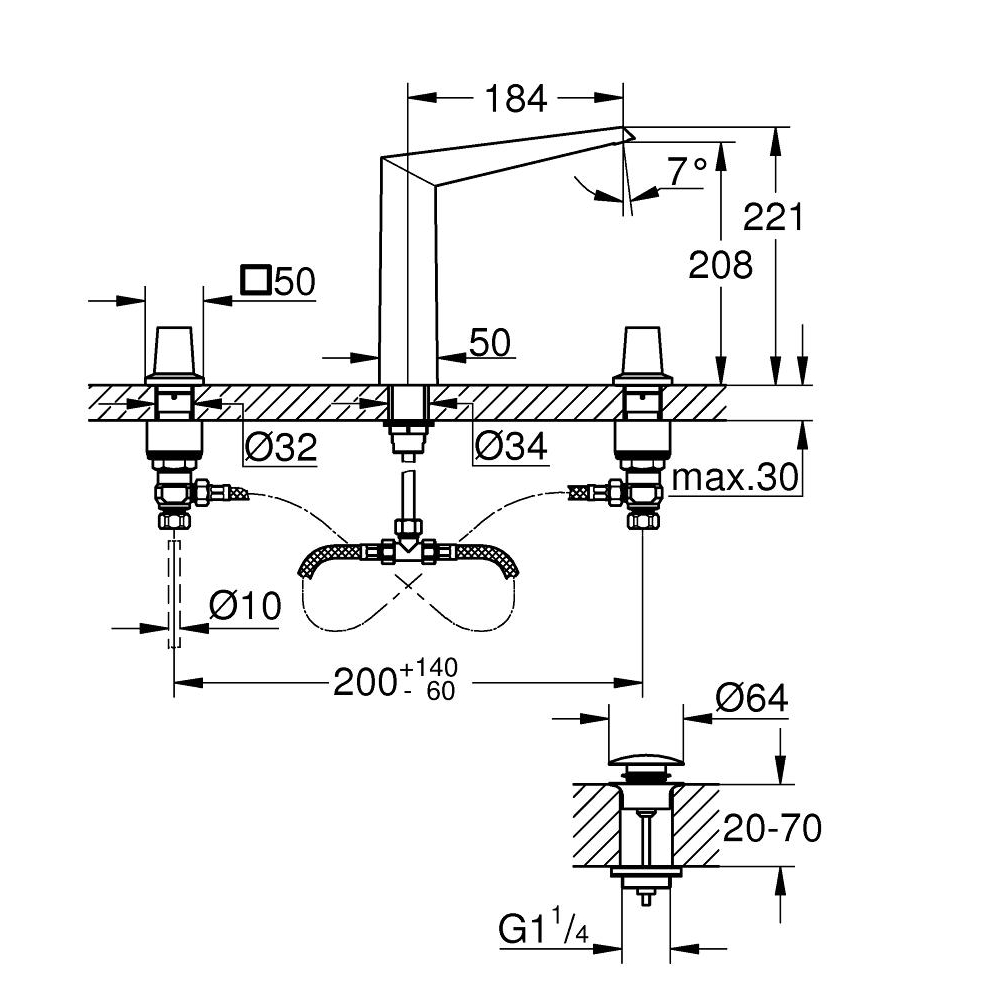

Height (mm)
310.0
Length (mm)
445.0
Width (mm)
190.0
Net Weight (kg)
3.935
Gross Weight (kg)
3.935
Colors & Finishes
Stainless steel
Collection
Allure Brilliant
Segment
Private Collections
